LYNCCN WAY150.30 V12 Single V Die European Hydraulic Press Brake Tooling
| Place of Origin | Anhui, China |
|---|---|
| Brand Name | LYNCCN |
| Certification | ISO9001 |
| Minimum Order Quantity | 3 Piece |
| Price | Negotiation |
| Packaging Details | Wooden box |
| Delivery Time | 30 days |
| Payment Terms | T/T |
| Supply Ability | 500 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

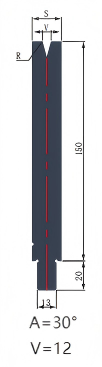

| Product Name | LYNCCN WAY150.30 V12 Single V Die European Hydraulic Press Brake Tooling | Brand | LYNCCN |
|---|---|---|---|
| Product Category | Press Brake Die | Width | 25mm |
| Height | 170mm | Angle | 30° |
| V Opening | 12mm | Material | 42CrMo |
| Hardness | HRC48-52 | Packing | Wooden Box |
| Highlight | CNC Hydraulic Press Brake tool,CNC Press Brake tooling,European Hydraulic Press Brake Tooling |
||
Product Description
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.
Technical Parameters:
| Product Type | Press Brake Die |
| Length | 550mm/500mm |
| Brand | LYNCCN |
| Width | 25mm |
| Height | 170mm |
| Angle | 30° |
| V Opening | 12mm |
| Hardness | HRC48-52 |
| Heat Treatment | Induction Hardening |
| Material | 42CrMo |
| Max. Load | 50T/M |
| Packing | Wooden Box |
| Delivery Time | 30 days |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Press brake tooling are widely used in sheet metal fabrication, enabling precise bending for enclosures, brackets, and panels across multiple industries including electronics, electrical, and custom parts manufacturing.
