LYNCCN WAY100.86-V6 Single V Die For European Type Press Brake Die 86 Angle
| Place of Origin | Anhui, China |
|---|---|
| Brand Name | LYNCCN |
| Certification | ISO9001 |
| Model Number | WAY100.86 |
| Minimum Order Quantity | 835mm*3pcs |
| Price | Negotiation |
| Packaging Details | Wooden box |
| Delivery Time | 30 days |
| Payment Terms | T/T |
| Supply Ability | 500 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | LYNCCN WAY100.86-V6 Single V Die For European Type Press Brake Die 86 Angle | Packing | Wooden Box |
|---|---|---|---|
| Material | 42CrMo | Product Category | Wila Press Brake Tooling |
| Width | 20mm | Hardness | HRC48-52 |
| Angle | 86° | Height | 120mm |
| Highlight | 237mm Height Press Brake Punch,R1mm Radius Press Brake Punch,Durable 42CrMo Press Brake Punch |
||
Product Description
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

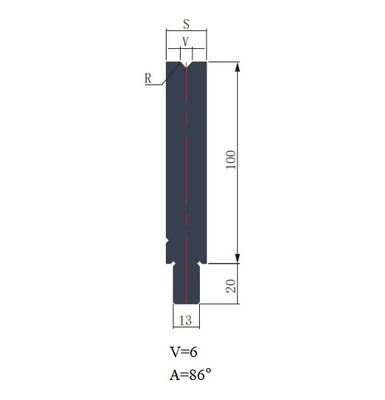

Technical Parameters:
| Product Type | Press Brake Die |
| Length | 550mm/500mm |
| Width | 20mm |
| Height | 120mm |
| Angle | 86° |
| Hardness | HRC48-52 |
| Heat Treatment | Induction Hardening |
| Material | 42CrMo |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Press brake tooling are widely used in sheet metal fabrication, enabling precise bending for enclosures, brackets, and panels across multiple industries including electronics, electrical, and custom parts manufacturing.
