LYNCCN WAY100.30 V20 Custom Hydraulic Press Brake Tooling Single V Die
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | LYNCCN WAY100.30 V20 Custom Hydraulic Press Brake Tooling Single V Die | Brand | LYNCCN |
|---|---|---|---|
| Product Category | Press Brake Die | Width | 35mm |
| Material | 42CrMo | V Opening | 20mm |
| Height | 120mm | Hardness | HRC50±2 |
| Angle | 30° | Packing | Wooden Box |
| Highlight | WAY100.30 Hydraulic Press Brake Tooling,Lynccn Hydraulic Press Brake Tooling,V20 Custom Hydraulic Press Brake Tooling |
||
Product Description
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

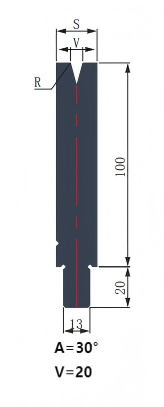

Technical Parameters:
| Product Type | Press Brake Die |
| Length | 550mm/500mm |
| Brand | LYNCCN |
| Width | 35mm |
| Height | 120mm |
| Angle | 30° |
| V Opening | 20mm |
| Hardness | HRC48-52° |
| Heat Treatment | Induction Hardening |
| Material | 42CrMo |
| Max. Load | 40T/M |
| Packing | Wooden Box |
| Delivery Time | 30 days |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Press brake tooling are widely used in sheet metal fabrication, enabling precise bending for enclosures, brackets, and panels across multiple industries including electronics, electrical, and custom parts manufacturing.
