YS20.11/160 88 Degree Amada Press Brake Die 160mm Press Brake V Die Opening
| Place of Origin | China |
|---|---|
| Brand Name | LYNCCN |
| Model Number | YS20.11/160 |
| Price | Negotiation |
| Packaging Details | Wooden case |
| Delivery Time | 25 Days |
| Payment Terms | T/T |
| Supply Ability | 500 pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

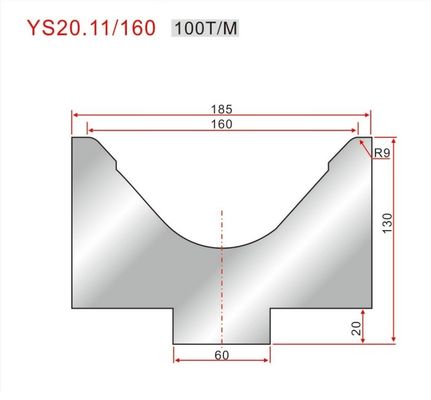

| Name | YS20.11/160 Amada Press Brake Single V Die | Bearing | 100T/m |
|---|---|---|---|
| V-Opening | V160mm | Width | 185mm |
| Height | 130mm | Hardness | HRC48-53 |
| Mould Material | 42Crmo | Packaging | Wooden Box |
| Angle | 88° | Design Software | AutoCAD |
| Highlight | Amada Press Brake Die,88 Degree Press Brake Die,160mm Press Brake V Die Opening |
||
Product Description
YS20.11/160 88° Amada Press Brake Die With 160mm V Opening With 42Crmo Material
Product Description
Press brake tooling:
Bending and forming sheet metal are made possible by press brake tooling, a vital component in bending machines.
This tooling includes punches, dies, guide rails, die holders, and other necessary elements. Its versatility is evident in the availability of different sizes and styles, such as the renowned Amada style, Wila and Trumpf style, and Euro style, allowing for seamless adaptation to various bending machine brands.
|
Product Name
|
YS20.11/160 Amada Press Brake Single V Die
|
| Mould Material |
42CrMo
|
|
V-Opening
|
V160mm |
|
Angle
|
88°
|
|
Bearing
|
100T/m
|
|
Width
|
185mm |
|
Height
|
130mm
|
| Hardness | HRC48-53 |
| Packaging | Wooden Box |
|
Design Software
|
AutoCAD |
How to choose a tool you need:
Standard Tools
1. When ordering a standard mold, first select the shape of the mold.
2. Provide the total length, angle, sharp R, die height, etc
3. The mold that needs to be divided can be divided into dimensions
Special Forming Tools
1. Provide the cross section shape drawing of product workpiece
2. Provide bending machine manufacturer, machine tonnage, machine length and other relevant data.
3. Provide product material, plate thickness and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, straightness)
5. Provide product materials (for mold test)
6. If there is any difficulty in selecting the mould, please consult us.
3. The mold that needs to be divided can be divided into dimensions
Special Forming Tools
1. Provide the cross section shape drawing of product workpiece
2. Provide bending machine manufacturer, machine tonnage, machine length and other relevant data.
3. Provide product material, plate thickness and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, straightness)
5. Provide product materials (for mold test)
6. If there is any difficulty in selecting the mould, please consult us.
Company Show
FAQ
1. Are you a manufacturer or a trading company?
We are a manufacturer.
2. Can you put my brand name (logo) on these products?
Yes we can.
3. When can you ship the products after we make payment?
Standard products in stock usually take 3-7 days, non-standard products take 25-30 days.
4. How can you guarantee the quality?
- Within 3 months of receiving the goods, if there is a quality problem, free of charge to replace the new one after confirmation.
- We have IQNET Certificate.
- We have more than 20 years of production experience and professional technicians.
5. What is the Minimum Order Quantity (MOQ) for your OEM/ODM service?
MOQ 1pcs, min order amount USD1000.
