WAY100.86 V8 Wila Type Press Brake Single V Die

  • WAY100.86 V8 Wila Type Press Brake Single V Die
Place of Origin Anhui, China
Brand Name LYNCCN
Certification ISO9001
Price Negotiation
Packaging Details Wooden box
Delivery Time Negotiation
Payment Terms T/T
Supply Ability 500 Piece/Pieces per Month amada high quality hydraulic press brake punch and die tools

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name WAL237.90.R1 Wila Type Custom 90 Degree Press Brake Punch Packing Wooden Box
Material 42CrMo Product Category Wila Press Brake Tooling
Width 20mm Hardness HRC55-60
Angle 90° Height 237mm
Highlight

V Die Press Brake Punch

,

Wila Type Press Brake Punch
Leave a Message
Product Description

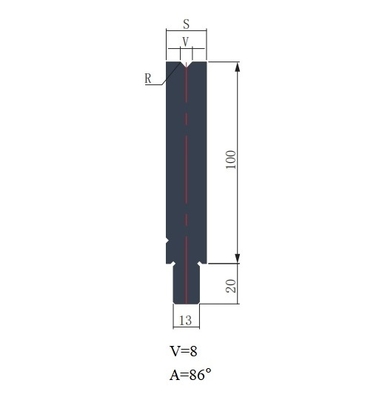

WAY100.86 V8 Wila Type Press Brake Single V Die
Product Specifications
Attribute Value
Product Name WAL237.90.R1 Wila Type Custom 90 Degree Press Brake Punch
Packing Wooden Box
Material 42CrMo
Product Category Wila Press Brake Tooling
Width 20mm
Hardness HRC55-60
Angle 90°
Height 237mm
Product Description

A press brake die is an essential tool used in press brake machines to precisely bend sheet metal into desired angles and shapes. This system consists of a punch (upper tool) and die (lower tool) that work in tandem to form metal components. Different die configurations enable various bending techniques including V-bending, U-bending, and hemming operations.

This Wila Type Single V Die is designed for CNC Press Brake applications, compatible with both CNC Hydraulic Press Brake systems and standard Hydraulic Press Brake Machines.

Technical Parameters
Parameter Specification
Product Type Wila Press Brake Tooling
Length 550mm/500mm
Width 20mm
Height 120mm
Angle 86°
Hardness HRC48-52
Heat Treatment Induction Hardening
Material 42CrMo
Max. Load 100T/M
Packing Wooden Box
Standard Segmentation
WAY100.86 V8 Wila Type Press Brake Single V Die 0
500mm
WAY100.86 V8 Wila Type Press Brake Single V Die 1
515mm
WAY100.86 V8 Wila Type Press Brake Single V Die 2
550mm Segmentation
Industrial Applications

Wila Press Brake Tooling is extensively used in precision sheet metal fabrication, enabling accurate bending operations for enclosures, brackets, panels, and custom components across multiple industries including:

  • Electronics manufacturing
  • Electrical component production
  • Custom metal parts fabrication
  • Industrial equipment manufacturing
WAY100.86 V8 Wila Type Press Brake Single V Die 3
WAY100.86 V8 Wila Type Press Brake Single V Die 4
WAY100.86 V8 Wila Type Press Brake Single V Die 5
WAY100.86 V8 Wila Type Press Brake Single V Die 6
WAY100.86 V8 Wila Type Press Brake Single V Die 7
WAY100.86 V8 Wila Type Press Brake Single V Die 8
