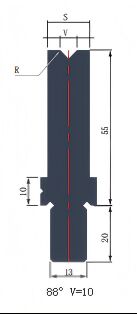

LYNCCN BCY55.88 V10 Press Brake Die Single V Die with Induction Hardening and 42CrMo Material
Product Details
| Product Name | LYNCCN BCY55.88 V10 Press Brake Tooling Single V Die | V-opening | V10 |
|---|---|---|---|
| Heat Treatment | Induction Hardening | Angle | 88° |
| Max. Load | 100T/M | Hardness | HRC53±2 |
| Material | 42CrMo | Packing | Wooden Box |
| Width | 20mm | Height | 75mm |
| Highlight | LYNCCN BCY55.88 V10 press brake die,single V die for press brake,press brake tooling with warranty |
||
Product Description
LYNCCN BCY55.88 V10 Press Brake Tooling Single V Die
A press brake die is an essential tool used in press brake machines to bend sheet metal into precise angles and shapes. This tooling system consists of a punch (upper tool) and a die (lower tool) that work in tandem to form metal components. Different die configurations enable various bending operations including V-bending, U-bending, and hemming processes.
This product is a single V die designed for CNC press brake applications, compatible with CNC hydraulic press brake systems and hydraulic press brake machinery.
Technical Specifications
| Product Type | Press Brake Single V Die |
|---|---|
| V-opening | V10 |
| Angle | 88° |
| Width | 20mm |
| Height | 75mm |
| Material | 42CrMo |
| Length | 550mm/500mm |
| Hardness | HRC53±2 |
| Heat Treatment | Induction Hardening |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation Options
500mm Segmentation
1000mm Segmentation
1100mm Segmentation
Industry Applications
Our hydraulic CNC press brake tooling is engineered for diverse industrial applications and operational scenarios. These precision tools are extensively utilized in metalworking and fabrication sectors for bending and shaping metal sheets with exceptional accuracy.
Our press brake dies are compatible with a comprehensive range of press brake machines and find widespread application across multiple industries including:
- Aerospace manufacturing
- Automotive production
- Construction and structural fabrication
- Shipbuilding and marine industries
