LS502 High Precision Press Brake Die for Sheet Metal Bending
| Place of Origin | China |
|---|---|
| Brand Name | LYNCCN |
| Model Number | LS502 |
| Minimum Order Quantity | 1 |
| Price | USD100-USD200 |
| Packaging Details | Wooden case |
| Delivery Time | 7 Days |
| Payment Terms | T/T |
| Supply Ability | 500 pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | LS502 Amada Press Brake 2V Die | Hardness | HRC48-53 |
|---|---|---|---|
| Mould Material | 42Crmo | Design Software | AutoCAD |
| Length | 835mm | V Groove | V6, V10 |
| Surface Treatment | Polishing | Packing | Wooden Box |
| Angle | 90/88 Degrees | Shaping Mode | Forging Mould |
| Highlight | high precision press brake die,high precision die press brake,835mm die press brake |
||
Product Description
LS502 High Precision Press Brake Die for Sheet Metal Bending
Product Description
Press brake tooling:
The press brake tooling is designed for bending machines to facilitate the bending and forming of sheet metal.
It encompasses upper dies, lower dies, guide rails, die holders, and other components.
With diverse sizes and styles available, including the popular Amada style, Wila and Trumpf style, and Euro style, it can be adjusted to fit various bending machine brands.
|

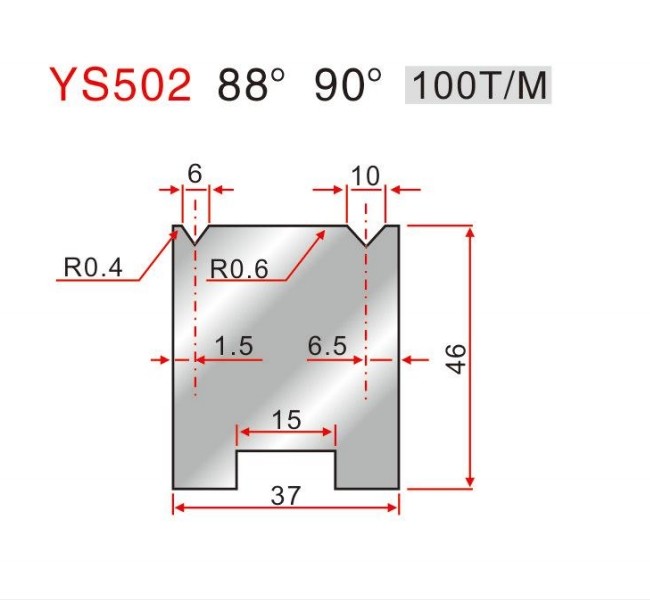

Product Name
|
YS502 Amada Press Brake 2V Die
|
|
Material
|
42CrMo
|
|
Design Software
|
AutoCAD
|
|
Length
|
835mm
|
|
Hardness
|
HRC48-53
|
|
V Groove
|
V6, V10
|
|
Surface Treatment
|
Polishing
|
|
Angle
|
90/88 degrees
|
|
Package
|
Wooden case
|
|
Shaping mode
|
Forging Mould
|
How to choose a tool you need:
Standard Tools
1. When ordering a standard mold, first select the shape of the mold.
2. Provide the total length, angle, sharp R, die height, etc
3. The mold that needs to be divided can be divided into dimensions
Special Forming Tools
1. Provide the cross section shape drawing of product workpiece
2. Provide bending machine manufacturer, machine tonnage, machine length and other relevant data.
3. Provide product material, plate thickness and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, straightness)
5. Provide product materials (for mold test)
6. If there is any difficulty in selecting the mould, please consult us.
3. The mold that needs to be divided can be divided into dimensions
Special Forming Tools
1. Provide the cross section shape drawing of product workpiece
2. Provide bending machine manufacturer, machine tonnage, machine length and other relevant data.
3. Provide product material, plate thickness and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, straightness)
5. Provide product materials (for mold test)
6. If there is any difficulty in selecting the mould, please consult us.
Company Show
FAQ
1. Are you a manufacturer or a trading company?
We are a manufacturer.
2. Can you put my brand name (logo) on these products?
Yes we can.
3. When can you ship the products after we make payment?
Standard products in stock usually take 3-7 days, non-standard products take 25-30 days.
4. How can you guarantee the quality?
- Within 3 months of receiving the goods, if there is a quality problem, free of charge to replace the new one after confirmation.
- We have IQNET Certificate.
- We have more than 20 years of production experience and professional technicians.
5. What is the Minimum Order Quantity (MOQ) for your OEM/ODM service?
MOQ 1pcs, min order amount USD1000.
