YS508 Custom Brake Die Tooling With V Angle Of 30 Degrees
| Place of Origin | China |
|---|---|
| Brand Name | LYNCCN |
| Model Number | YS508 |
| Minimum Order Quantity | 1 |
| Price | USD100-USD300 |
| Packaging Details | Wooden case |
| Delivery Time | 25 Days |
| Payment Terms | T/T |
| Supply Ability | 500 pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | YS508 Amada Press Brake 2V Die | Tolerance | ±0.02mm |
|---|---|---|---|
| Angle | 30 Degrees | Surface Treatment | Polishing |
| V-Opening | V6, V10 | ODM/OEM | Available |
| Hardness | HRC48-53 | Packaging | Wooden Box |
| Precision | 0.02mm | Color | Metallic |
| Highlight | custom brake die tooling,ys508 brake die tooling,ys508 press brake tooling |
||
Product Description

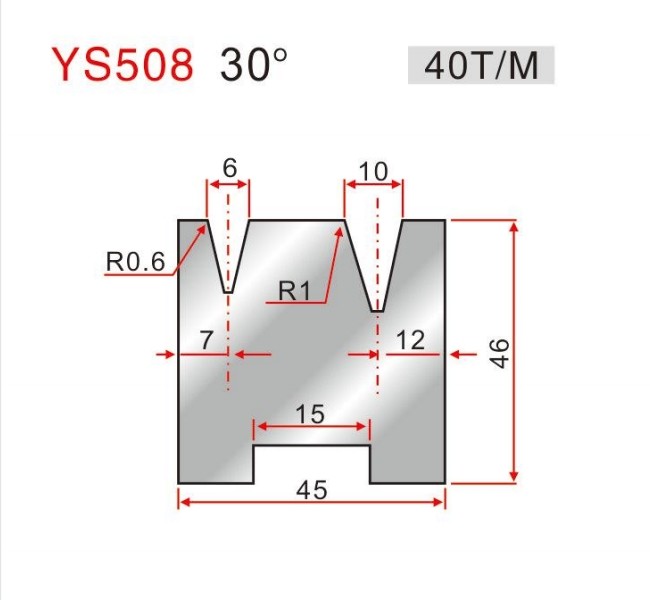

YS508 Custom Press Brake Tooling Die with V-Angle of 30 Degrees
Product Description
Press brake tooling:
The press brake tooling is an essential part of bending machines, enabling the efficient bending and forming of sheet metal.
It comprises upper dies, lower dies, guide rails, die holders, and other components. With a variety of sizes and styles, including the widely used Amada style, Wila and Trumpf style, and Euro style, the tooling can be easily adapted to fit different bending machine brands.
|
Product Name
|
YS508 Amada Press Brake 2V Die
|
| Mould Material |
42CrMo
|
|
V-Opening
|
V6, V10
|
|
Angle
|
30°
|
|
Tolerance
|
0.02mm
|
|
Precision
|
0.02mm |
|
Surface Treatment
|
Polishing
|
| ODM/OEM | Available |
| Packaging | Wooden Box |
|
Color
|
Metallic |
How to choose a tool you need:
Standard Tools
1. When ordering a standard mold, first select the shape of the mold.
2. Provide the total length, angle, sharp R, die height, etc
3. The mold that needs to be divided can be divided into dimensions
Special Forming Tools
1. Provide the cross section shape drawing of product workpiece
2. Provide bending machine manufacturer, machine tonnage, machine length and other relevant data.
3. Provide product material, plate thickness and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, straightness)
5. Provide product materials (for mold test)
6. If there is any difficulty in selecting the mould, please consult us.
3. The mold that needs to be divided can be divided into dimensions
Special Forming Tools
1. Provide the cross section shape drawing of product workpiece
2. Provide bending machine manufacturer, machine tonnage, machine length and other relevant data.
3. Provide product material, plate thickness and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, straightness)
5. Provide product materials (for mold test)
6. If there is any difficulty in selecting the mould, please consult us.
Company Show
FAQ
1. Are you a manufacturer or a trading company?
We are a manufacturer.
2. Can you put my brand name (logo) on these products?
Yes we can.
3. When can you ship the products after we make payment?
Standard products in stock usually take 3-7 days, non-standard products take 25-30 days.
4. How can you guarantee the quality?
- Within 3 months of receiving the goods, if there is a quality problem, free of charge to replace the new one after confirmation.
- We have IQNET Certificate.
- We have more than 20 years of production experience and professional technicians.
5. What is the Minimum Order Quantity (MOQ) for your OEM/ODM service?
MOQ 1pcs, min order amount USD1000.
