YS72 88 Degrees Press Brake Die Full Body Heat Treatment Brake Dies 835mm Length
| Place of Origin | China |
|---|---|
| Brand Name | LYNCCN |
| Model Number | YS72 |
| Minimum Order Quantity | 1 |
| Price | USD95-USD300/Piece |
| Packaging Details | Wooden case |
| Delivery Time | 25 Days |
| Payment Terms | T/T |
| Supply Ability | 500 pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

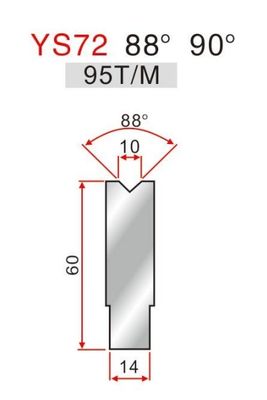

| Product Name | YS72 Amada Press Brake Single V Die | Application | Bend Sheet Metal In Shape |
|---|---|---|---|
| Mould Material | 42Crmo | Height | 60mm |
| Width | 18mm | Precision | 0.02mm |
| Bearing | 95T/m | Angle | 88 Degrees |
| Hardness | HRC48-52 | V-Opening | V10mm |
| Highlight | brake dies 835mm,88 degrees press brake die,full body heat treatment brake dies |
||
Product Description
YS72 88 Degrees Press Brake Die with Full Body Heat Treatment 835mm Length
Product Description
Press brake tooling:
Bending machine tools usually consist of two main parts: the punches and the dies. The punch is the part fixed on top of the bending machine, while the die is mounted on the table of the bending machine. When the sheet metal is placed between the punch and die, the sheet metal is bent into the desired shape by pressing down on the punch and lifting up the die.
|
Product Name
|
YS72 Amada Press Brake Single V Die
|
| Mould Material |
42CrMo
|
|
Height
|
60mm |
|
Angle
|
88 Degrees
|
|
Width
|
18mm
|
|
Precision
|
0.02mm |
|
Application
|
Bend Sheet Metal In Shape
|
| Bearing | 95T/m |
| Hardness | HRC48-52 |
|
V-Opening
|
V10mm |
How to choose a tool you need:
Standard Tools
1. When ordering a standard mold, first select the shape of the mold.
2. Provide the total length, angle, sharp R, die height, etc
3. The mold that needs to be divided can be divided into dimensions
Special Forming Tools
1. Provide the cross section shape drawing of product workpiece
2. Provide bending machine manufacturer, machine tonnage, machine length and other relevant data.
3. Provide product material, plate thickness and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, straightness)
5. Provide product materials (for mold test)
6. If there is any difficulty in selecting the mould, please consult us.
3. The mold that needs to be divided can be divided into dimensions
Special Forming Tools
1. Provide the cross section shape drawing of product workpiece
2. Provide bending machine manufacturer, machine tonnage, machine length and other relevant data.
3. Provide product material, plate thickness and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, straightness)
5. Provide product materials (for mold test)
6. If there is any difficulty in selecting the mould, please consult us.
Company Show
FAQ
1. Are you a manufacturer or a trading company?
We are a manufacturer.
2. Can you put my brand name (logo) on these products?
Yes we can.
3. When can you ship the products after we make payment?
Standard products in stock usually take 3-7 days, non-standard products take 25-30 days.
4. How can you guarantee the quality?
- Within 3 months of receiving the goods, if there is a quality problem, free of charge to replace the new one after confirmation.
- We have IQNET Certificate.
- We have more than 20 years of production experience and professional technicians.
5. What is the Minimum Order Quantity (MOQ) for your OEM/ODM service?
MOQ 1pcs, min order amount USD1000.
