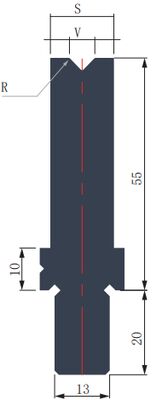

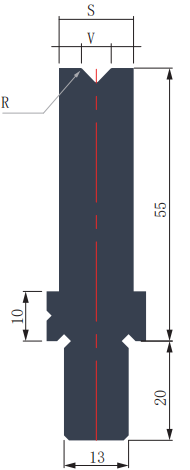

LYNCCN BCY55.88 V6 Press Brake Tooling Single V Die
Product Details
| Product Name | BCY55.88 V6 Press Brake Tooling Single V Die | V-opening | V6 |
|---|---|---|---|
| Heat Treatment | Induction Hardening | Angle | 88° |
| Hardness | HRC53±2 | Width | 15mm |
| Packing | Wooden Box | Height | 75mm |
| Max. Load | 100T/M | Material | 42CrMo |
| Highlight | Single V Press Brake Die,V6 88 Degree Press Brake Tooling,CNC Hydraulic Press Brake Die |
||
Product Description
Product Description:
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.
Technical Parameters:
| Product Type | Press Brake Single V Die |
| V-opening | V6 |
| Angle | 88° |
| Width | 15mm |
| Height | 75mm |
| Material | 42CrMo |
| Length | 550mm/500mm |
| Hardness | HRC53±2 |
| Heat Treatment | Induction Hardening |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
1000mm
1100mm Segmentation
Applications:
Our hydraulic CNC press brake punches are suitable for a variety of application occasions and scenarios. They are commonly used in metalworking and fabrication industries for bending and shaping metal sheets. Our products are compatible with a range of press brake machines and are widely used in industries such as aerospace, automotive, construction, and shipbuilding.
