LYNCCN WAY100.86-V40 High Performance Press Brake Die For Accurate Metal Bending
| Place of Origin | Anhui, China |
|---|---|
| Brand Name | LYNCCN |
| Certification | ISO9001 |
| Model Number | WAY100.86 |
| Minimum Order Quantity | 835mm*3pcs |
| Price | Negotiation |
| Packaging Details | Wooden box |
| Delivery Time | 30 days |
| Payment Terms | T/T |
| Supply Ability | 500 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Category | Press Brake Die | Product Name | High-Performance Press Brake Die For Accurate Metal Bending |
|---|---|---|---|
| V Opening | 40mm | Application | Used For Press Brake |
| Width | 55mm | Material | 42CrMo |
| Height | 120mm | Hardness | HRC50±2 |
| Angle | 86° | Packing | Wooden Case |
| Highlight | High Performance Press Brake Die,Accurate Metal Bending Press Brake Die,LYNCCN Custom Press Brake Tooling |
||
Product Description
Press brake tooling helps bend sheet metal into angles. It works with force from the machine’s ram. Different press brake dies are used based on thickness and shape.

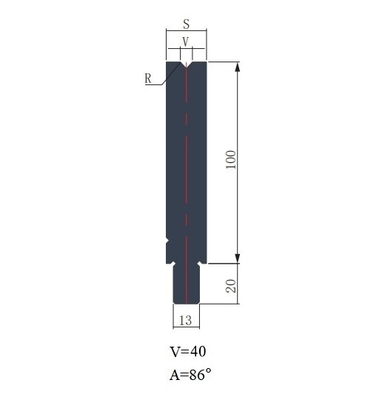

Technical Parameters:
| Brand | LYNCCN |
| Product Type | Press Brake Single V Die |
| V Opening | V40 |
| Angle | 86° |
| Width | 55mm |
| Height | 120mm |
| Max. Load | 100T/M |
| Material | 42CrMo |
| Hardness | HRC50±2 |
| Length | 550mm/500mm |
| Packing | Wooden Box |
| Heat Treatment | Induction Hardening |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Press brake tooling is the key tool in household appliance fabrication. Shapes outer shells for ovens, washers, and fridges. Supports high-volume, consistent output.
