LYNCCN WAY100.86-V50 Customized Press Brake Tooling Single V Die
| Place of Origin | Anhui, China |
|---|---|
| Brand Name | LYNCCN |
| Certification | ISO9001 |
| Model Number | WAY100.86-V50 |
| Minimum Order Quantity | 835mm*3pcs |
| Price | Negotiation |
| Packaging Details | Wooden box |
| Delivery Time | 30 days |
| Payment Terms | T/T |
| Supply Ability | 500 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Category | Press Brake Die | Product Name | Customized Press Brake Tooling Single V Die |
|---|---|---|---|
| V Opening | 50mm | Hardness | HRC48-52 |
| Width | 75mm | Material | 42CrMo |
| Height | 120mm | Angle | 86° |
| Packing | Wooden Case | Application | Used For Press Brake, Industrial, Sheet Metal Bending |
| Highlight | LYNCCN Press Brake Tooling,Customized Press Brake Tooling,Single V Die Press Brake Tooling |
||
Product Description
Press brake tooling form metal by clamping and pressing. The press brake punch and die define the bend shape. They enable accurate and repeatable bends.

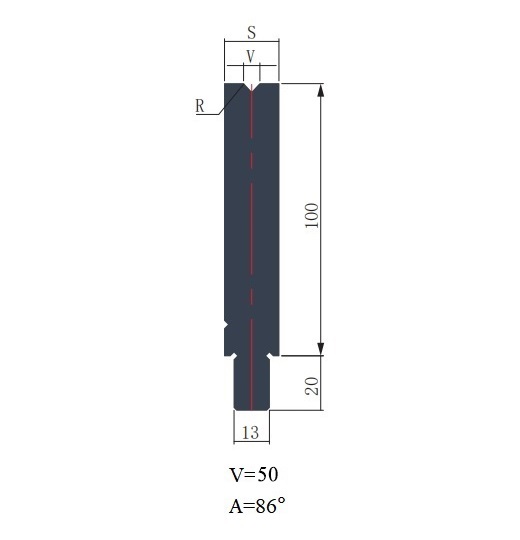

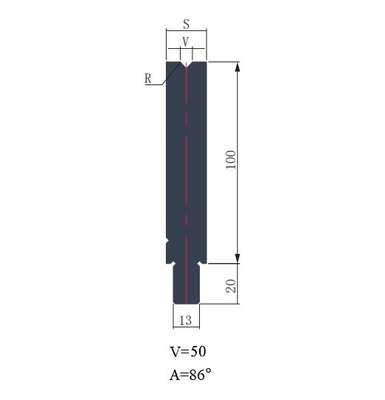

Technical Parameters:
| Brand | LYNCCN |
| Product Type | Press Brake Die |
| Angle | 86° |
| V Opening | V50 |
| Width | 75mm |
| Height | 120mm |
| Material | 42CrMo |
| Hardness | HRC48-52 |
| Length | 550mm/500mm |
| Max. Load | 100T/M |
| Heat Treatment | Induction Hardening |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Press brake tooling can be used in construction and architecture, press brake dies shape metal for doors, window frames, curtain walls, and roofing structures, ensuring durability and clean aesthetics.
