LYNCCN WAY100.84 V10 Customized Press Brake Tools Single V Die
| Place of Origin | Anhui, China |
|---|---|
| Brand Name | LYNCCN |
| Certification | ISO9001 |
| Model Number | WAY100.84-V8 |
| Minimum Order Quantity | 500mm*3pcs |
| Price | Negotiation |
| Packaging Details | Wooden box |
| Delivery Time | Negotiation |
| Payment Terms | T/T |
| Supply Ability | 500 Piece/Pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | WAY100.84 V10 Press Brake Single V Die | V-opening | V10 |
|---|---|---|---|
| Heat Treatment | Induction Hardening | Angle | 84° |
| Hardness | HRC50±2 | Width | 20mm |
| Packing | Wooden Box | Height | 120mm |
| Max. Load | 100T/M | Material | 42CrMo |
| Highlight | Customized Brake Dies For Hydraulic Press,Brake Dies For Hydraulic Press,Customized Press Brake Tooling |
||
Product Description
Product Description:
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

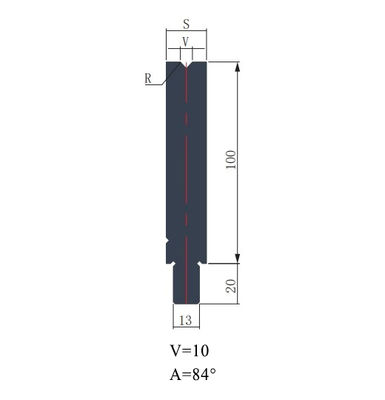

Technical Parameters:
| Product Type | Press Brake Single V Die |
| V-opening | V10 |
| Angle | 84° |
| Height | 120mm |
| Width | 20mm |
| Material | 42CrMo |
| Length | 550mm/500mm |
| Hardness | HRC50±2 |
| Heat Treatment | Induction Hardening |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Our hydraulic CNC press brake punches are suitable for a variety of application occasions and scenarios. They are commonly used in metalworking and fabrication industries for bending and shaping metal sheets. Our products are compatible with a range of press brake machines and are widely used in industries such as aerospace, automotive, construction, and shipbuilding.
